3 Display Strips Frosted 5 cm

3 Frosted Viewing Strips for Glass Panes 5cm

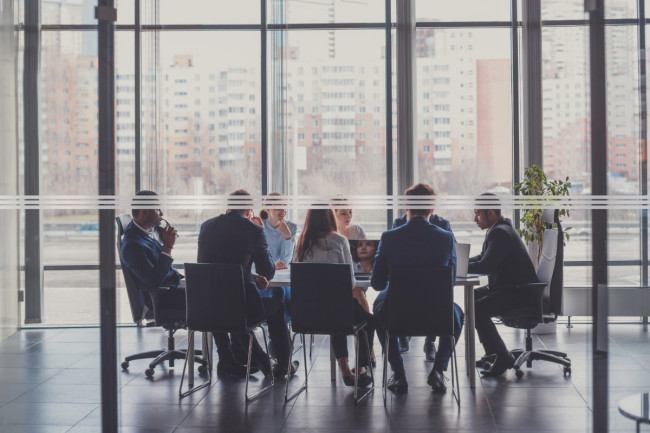

Choose a 5cm wide frosted visualization strip for glass walls. According to the laws of the Voirie et Espaces Publics sector, their use is made compulsory by the decree of August 1, 2006, supplemented by DGUHC circular 2007-53 of November 30: “Doors (or partitions) with a significant glazed area must be identifiable by visual elements. It is recommended to place the motifs inside 2 horizontal strips 5 cm wide, located at 1.10 m and 1.60 m high”.

The visual strip can be used to mark glazing and partitions in public areas. Ideal for government and corporate buildings, town halls, shops, waiting rooms, hospitals, banks, etc.

The benefits of viewing strips

• Highlight glazing
• Complies with safety standards concerning the visibility of glazed walls, in accordance with the decree of August 1, 2006
• Compatible with all types of glazing
• Water-based installation

The product will be delivered to you under transfer paper and in 2m pieces to facilitate installation.

Technical data



Material	PVC polymer
manufacturing process	Calandered
material	PVC
service life	8 years
Resistance	Indoor and outdoor
Thickness	80 µm
Application surface	Flat
Substrates	Glass, metal, varnished wood, paint, some rigid plastics, aluminum, metal, acrylic,
Application temperature	10°C à 30°C
Temperature resistance	-40°C à +90°C
Application limits	Wavy or highly irregular surfaces, or with features such as large rivets or bolt heads Substrates that do not have a clean, smooth surface, or poor cohesion between paint and substrate Stainless steel Flexible substrates Three-dimensional surfaces

How to use

Substrate preparation

All surfaces, including freshly painted ones, must be cleaned before applying adhesive film.

Do not use greasy solvents such as methylated spirits.

Application

Check substrate temperature, which must be between 10°C and 30°C, and humidity below 80%.

Installation with water recommended.

Care

Always wait one week after application before cleaning.

Use the same type of cleaning product as for high-quality painted surfaces. The product must be liquid, non-abrasive, free from aggressive solvents, and have a pH between 3 and 11 (neither too acidic nor too alkaline).

High-pressure cleaning must comply with certain rules:

• Maximum pressure 80 bar
• Maximum temperature 25°C
• Do not position the nozzle less than 30 cm from the surface, and 60 cm from welds
• Keep the jet perpendicular to the surface, without insisting on the edges.

Removal

The film has a permanent adhesive, making it difficult to remove.

The use of a heat generator can facilitate film removal.

Any residues can be removed with rubbing alcohol, which is strong enough to remove the adhesive without attacking the substrate.
